Free Shape Packing
The highlighted module on the CAP(EX) series. Three rotary FSP hoppers on every size pack free-shape and half tablets that do not fit a standard cassette, with a dedicated FSP printer.
Pouch packaging
CAP(EX)-52FS · 72FS · 92FS
Extendable Intelligent Tablet Packing System

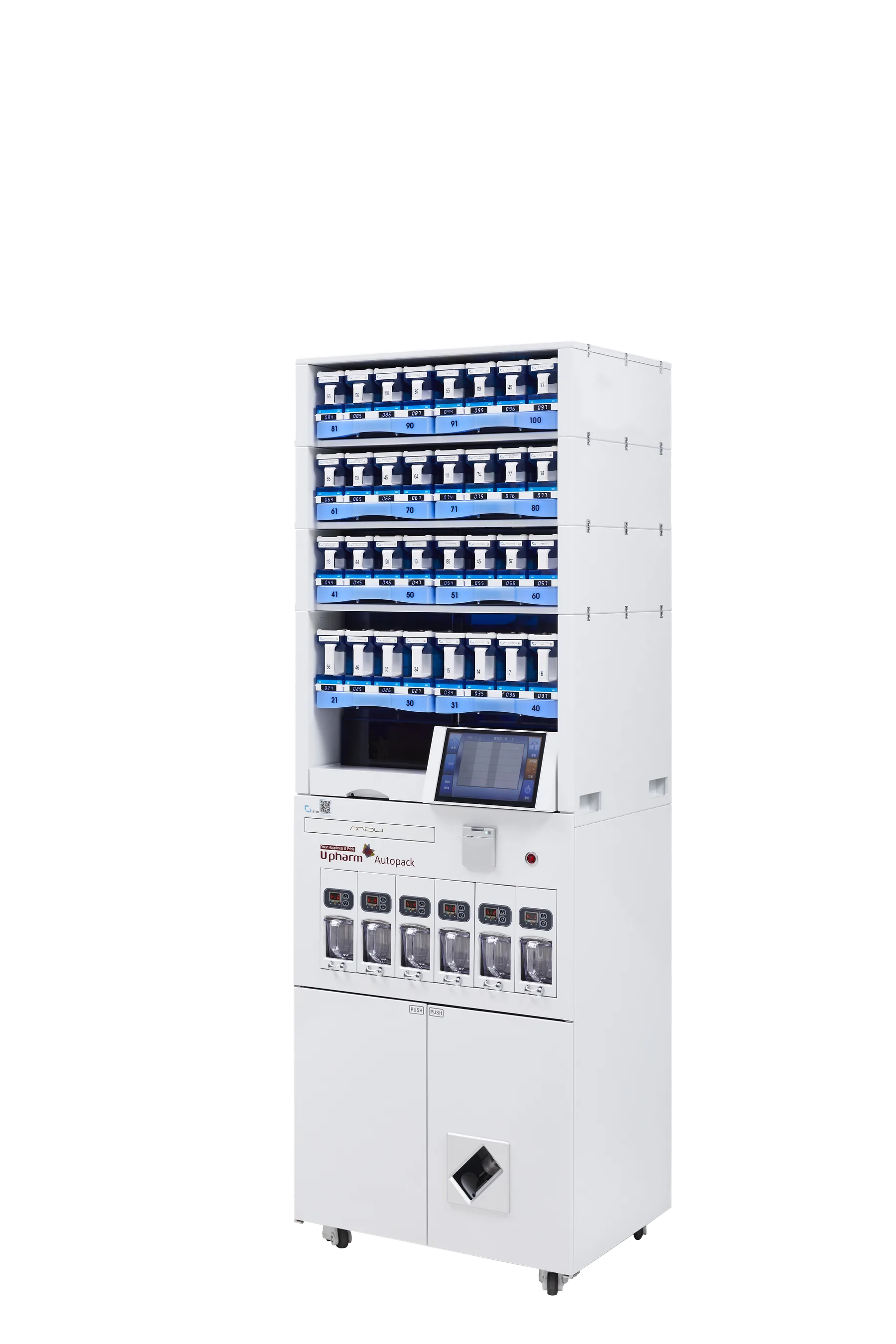

The CAP(EX) Model is CRETEM's extendable cassette packager with 3 Free Shape Packing (FSP) units on every size. Start with 52 cassettes in a 670 mm-wide cabinet and grow in place to 72 or 92 cassettes by adding cassette blocks — the control, FSP and printing systems stay the same. Every configuration also runs a 30-cell Manual Divide Unit, infrared photodetection and thermal-transfer pouch printing at up to 60 unit-dose pouches per minute.
Supplied and supported in Canada and the US by Maxis Pharmacy Automation.
Standard on every size
Extendable in place
Max unit dose · avg 55 multi dose
490 mm deep
Overview
Three Free Shape Packing units are standard on the 52FS, 72FS and 92FS — the highlighted packing path for half tablets and irregular shapes that do not fit a cassette.

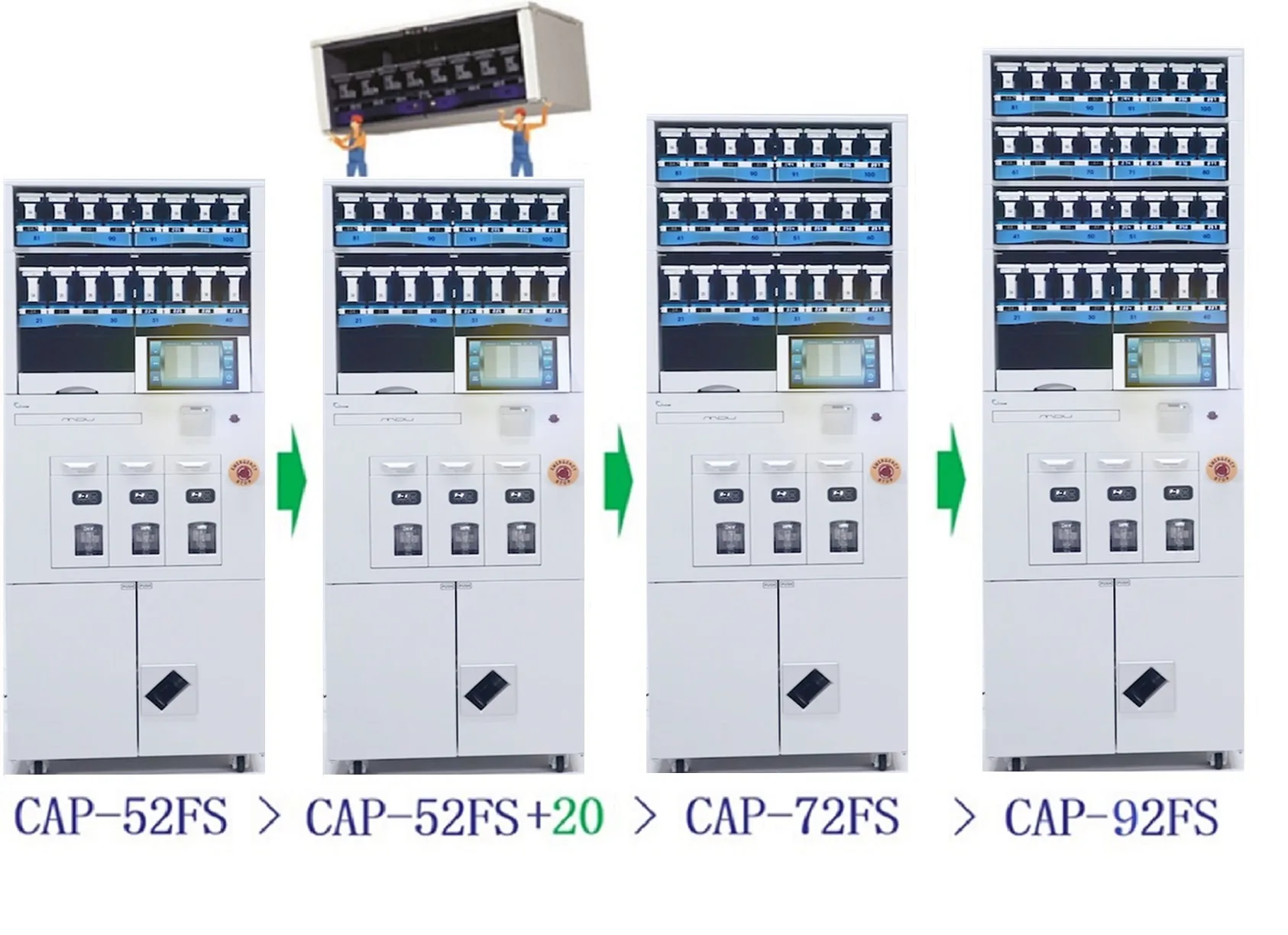

CAP(EX)-52FS grows to 72FS and 92FS by adding 20-cassette blocks on the same base and control unit, so capacity follows your formulary instead of forcing a replacement.

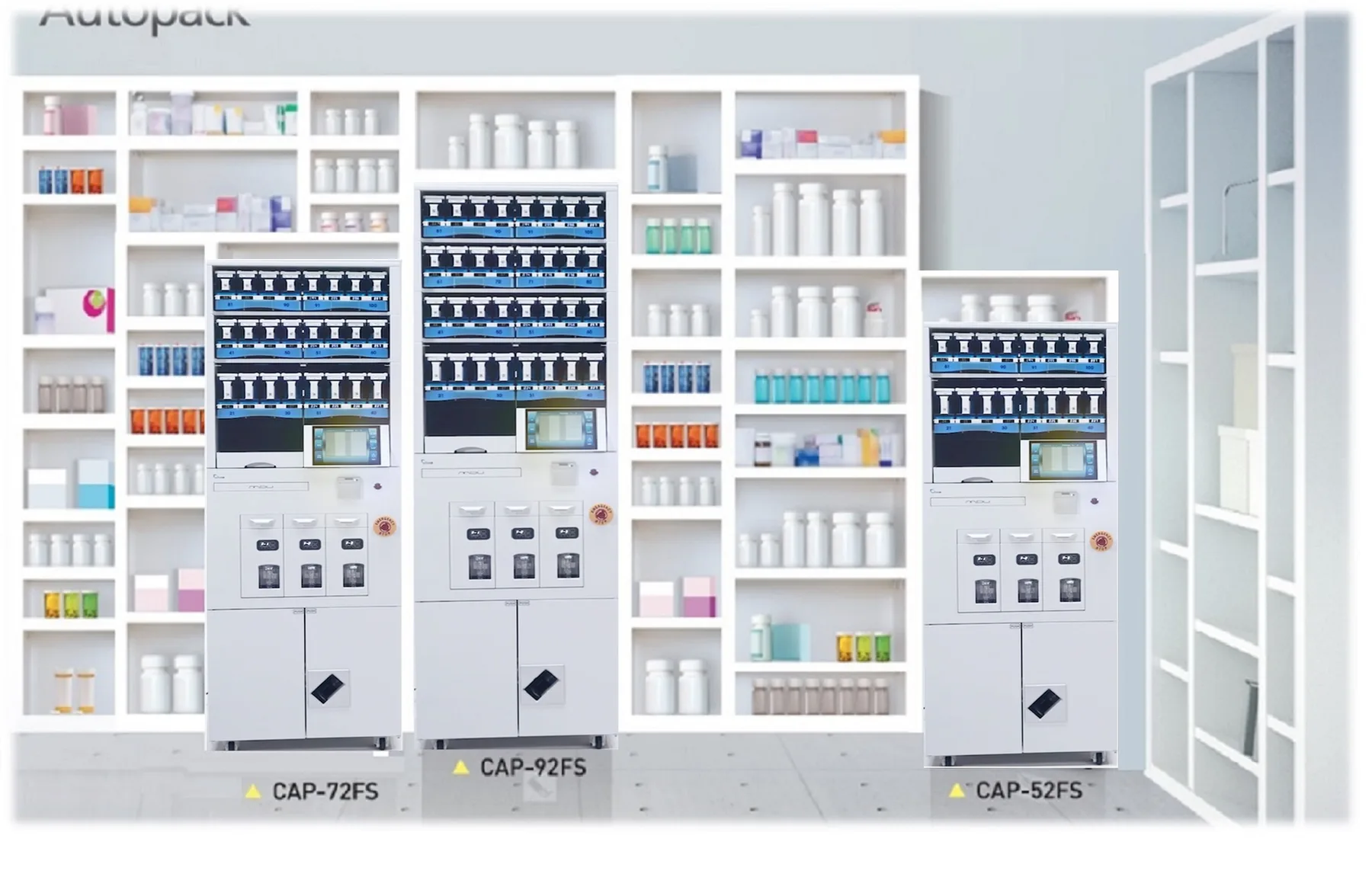

At 670 × 490 mm, every CAP(EX) configuration shares the same floor area — only the height changes (1,560 / 1,740 / 1,910 mm).
How it works
Orders arrive via OCS linkage; every step below is handled inside the CAP(EX) Model.
Prescriptions arrive through the OCS linkage or are entered directly on the Windows 10 touch screen.
Each tablet is dispensed from its dedicated drug cassette and verified by infrared photodetection.
Free-shape and half tablets are packed by the FSP unit; manually divided medications are loaded via the MDU tray.
The printing & packing system thermal-prints the wrapper — no character or font-size limit — and seals each pouch.
Unit-dose or multi-dose pouches leave through the pouch outlet at up to 60 pouches per minute.
Up close
Components
Component overview as labelled in the CRETEM product documentation.
Dedicated cassette per medication, installed in each single drawer of the cabinet.
FND cassette positions for high-frequency medications in the upper cabinet.

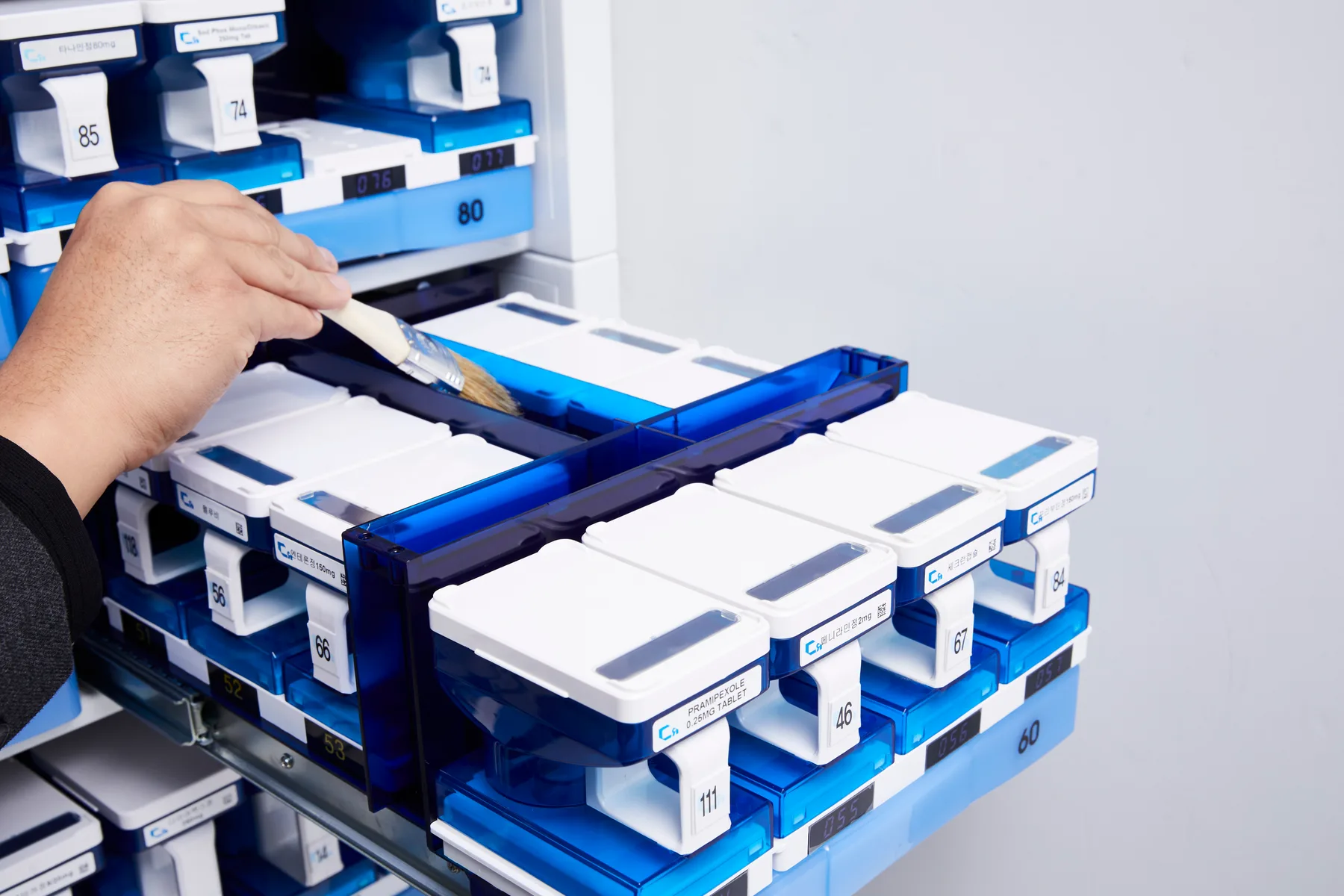

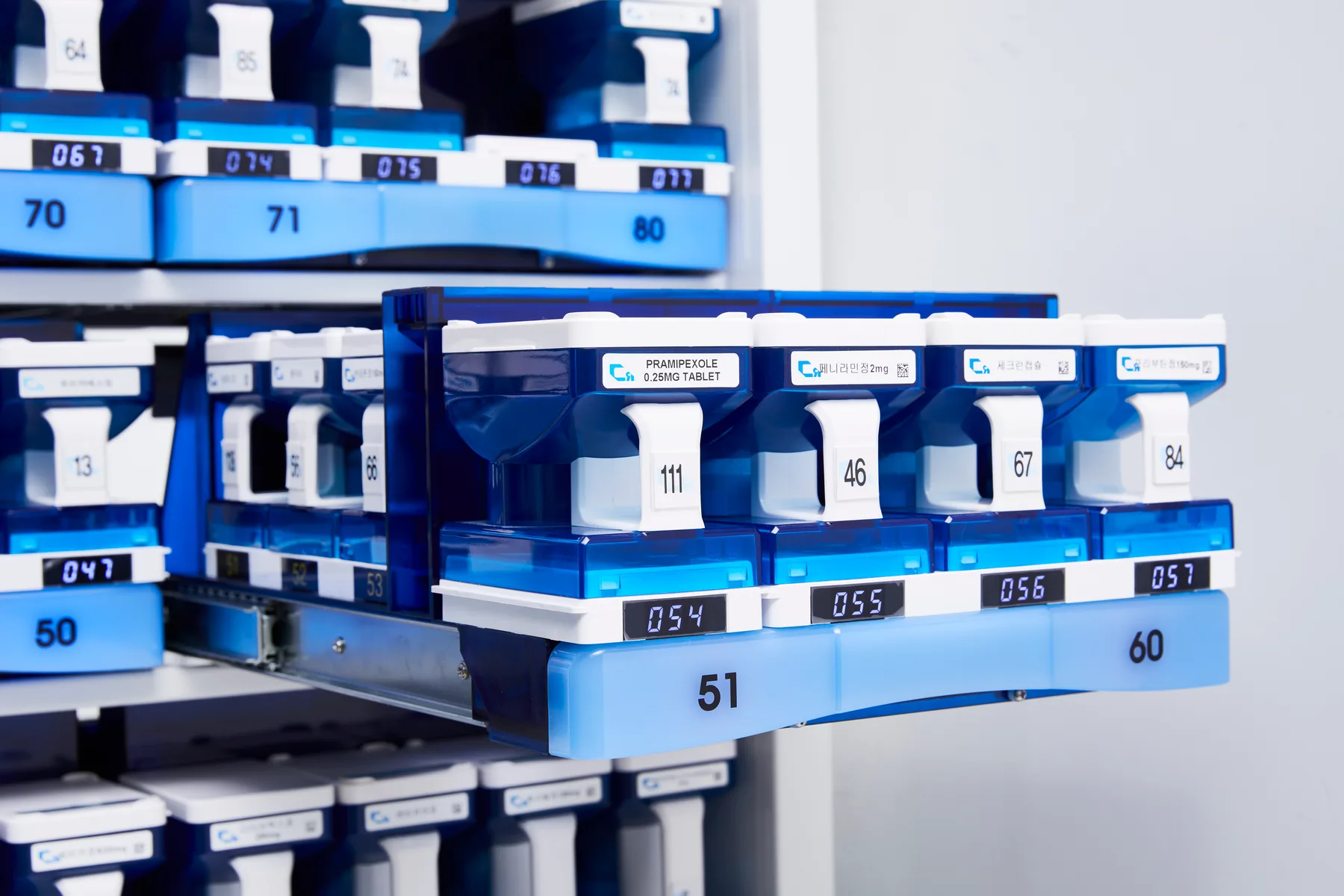

The advanced T-slide technology lets staff draw cassettes forward for easy replenishment.
Cassettes are refilled from the cabinet face via the T-slide drawers.
Industrial PC with a Windows 10 touch screen (10.1") for order input and system control.
Cell tray for manually divided medications that are not assigned to a cassette.

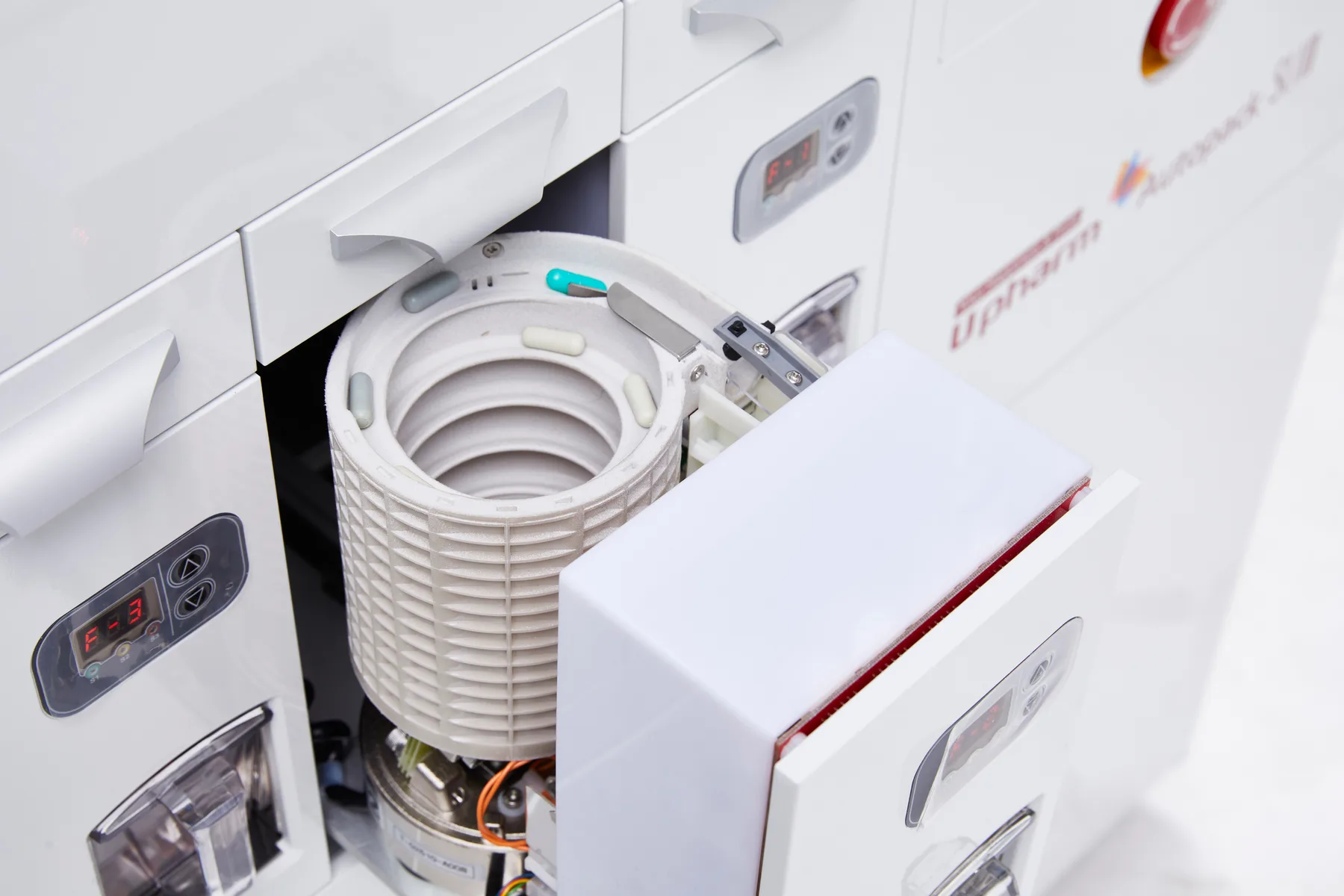

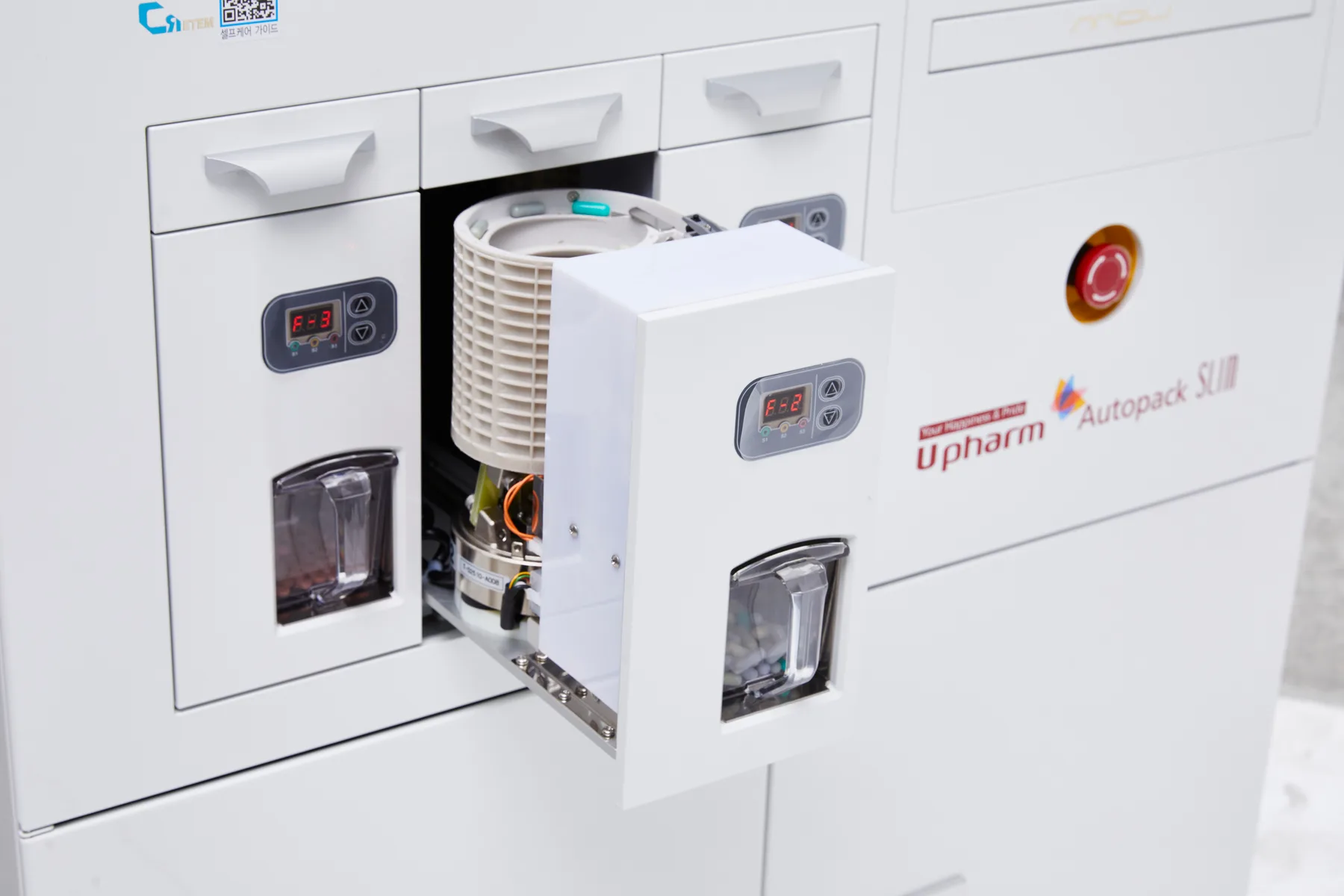

Packs free-shape and half tablets that do not fit a standard cassette. A dedicated FSP printer labels FSP output.
Front-panel emergency stop.
Audio status messages during operation.

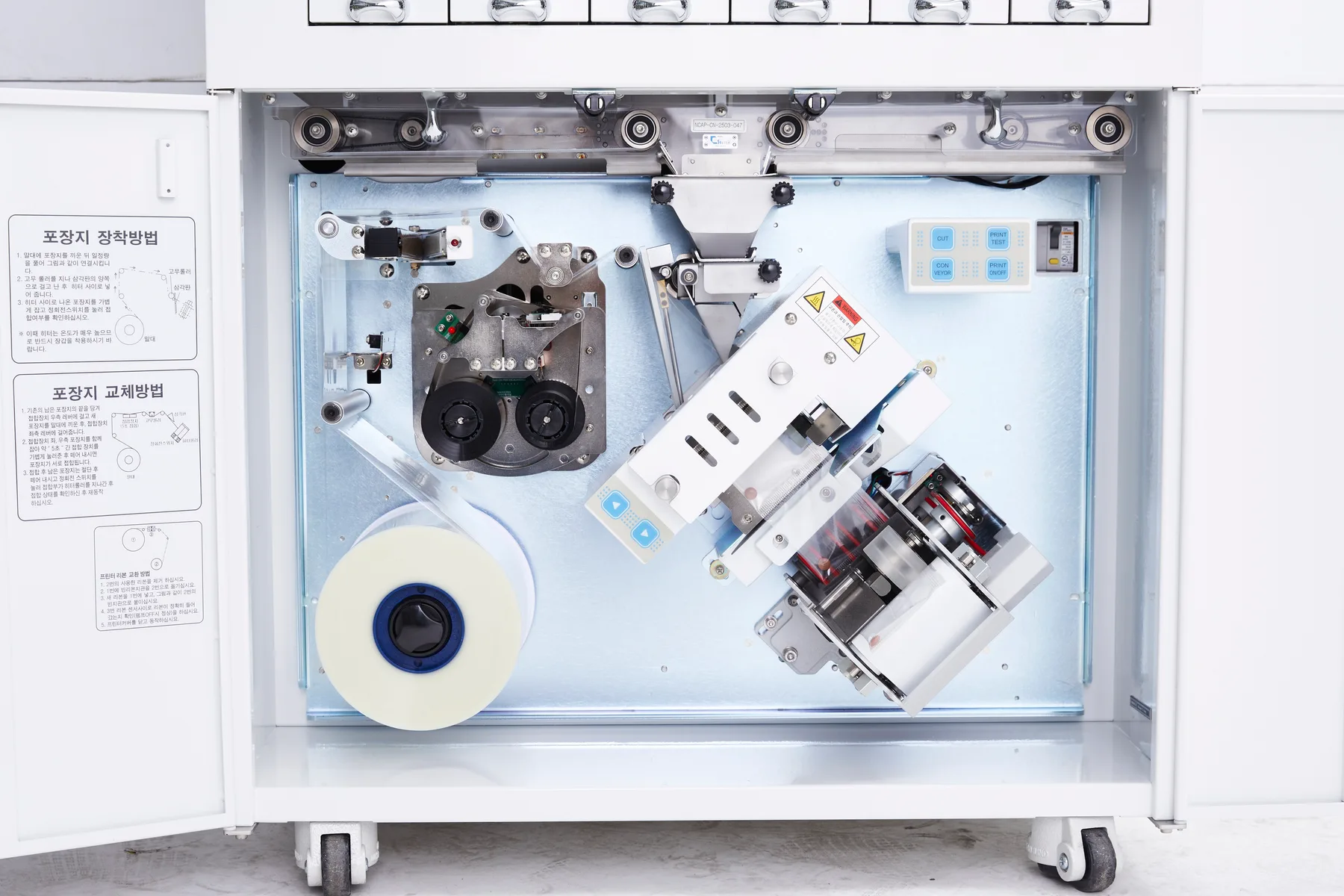

Thermal-transfer printing and pouch sealing in the lower cabinet; no limit to the number of characters or font size.
Finished pouches exit at the front of the lower cabinet.
Options & modules
Three Free Shape Packing (FSP) units are standard on every CAP(EX) size — the highlighted module for half tablets and irregular shapes.
The highlighted module on the CAP(EX) series. Three rotary FSP hoppers on every size pack free-shape and half tablets that do not fit a standard cassette, with a dedicated FSP printer.

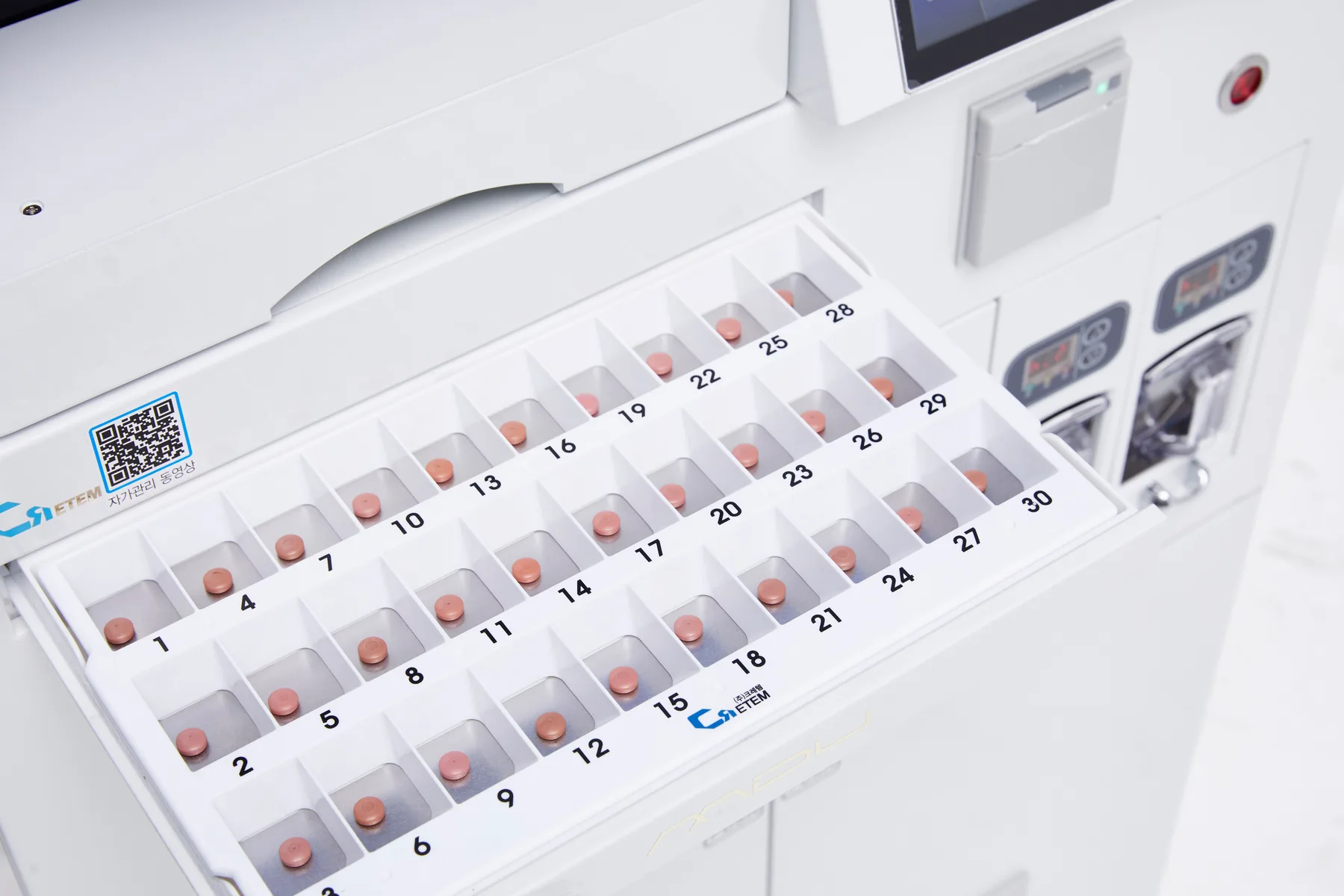

Numbered 30-cell tray for medications added by hand, so non-cassette items still travel through the same pouch sequence.
Cassette drawers slide forward for replenishment from the front of the cabinet, without pulling a full drawer stack.
Models
Capacity, options and cabinet dimensions by model. Packing speed, detection and printing are common to the range.
| Specification | CAP(EX)-52FS | CAP(EX)-72FS | CAP(EX)-92FS |
|---|---|---|---|
| No. of cassettes | 52 | 72 | 92 |
| Cassette types (S / M / L) | 12 / 20 / 20 | 32 / 20 / 20 | 52 / 20 / 20 |
| Block structure | A + C + B | A + A + C + B | A + A + A + C + B |
| FSP | 3 units | 3 units | 3 units |
| MDU | 30 cell | 30 cell | 30 cell |
| Main body (W × D × H, mm) | 670 × 490 × 1,560 | 670 × 490 × 1,740 | 670 × 490 × 1,910 |
| Weight | 200 kg | 225 kg | 250 kg |
Swipe sideways to compare all 3 models.
Not sure which configuration fits your formulary or floor plan? We size it with you.
Get a configuration recommendationSpecifications
As published in the CRETEM product documentation. Dimensions are main body only (W × D × H).
FAQ
Can't find what you need? Our team answers configuration and installation questions directly.
Ask a specialistYes. Three Free Shape Packing (FSP) units are standard on CAP(EX)-52FS, 72FS and 92FS, with a dedicated FSP printer. FSP packs half tablets and irregular shapes that do not fit a cassette. Every size also includes a 30-cell Manual Divide Unit.
Cassette blocks are added to the existing unit. CAP(EX)-52FS is an A + C + B structure; adding one A block gives CAP(EX)-72FS (A + A + C + B) and a second gives CAP(EX)-92FS (A + A + A + C + B). Width and depth stay 670 × 490 mm; height increases from 1,560 to 1,740 to 1,910 mm.
CAP(EX)-52FS: 12 small, 20 medium, 20 large. CAP(EX)-72FS: 32 small, 20 medium, 20 large. CAP(EX)-92FS: 52 small, 20 medium, 20 large.
Maximum packing speed is 60 unit-dose pouches per minute; multi-dose runs average 55 pouches per minute.
Yes. All three configurations include a 30-cell Manual Divide Unit alongside the three FSP units.
Standard wrapping paper is 75 mm × 70 mm, with 55 mm × 50 mm available by order. Printing is thermal transfer with no limit on the number of characters or font size.
Through an OCS (order communication system) linkage or by internal input on the 10.1-inch Windows 10 touch screen.
200W typical, 600W maximum.
