FSP3 or 4 units
Free Shape Packing
Front-mounted FSP drawers with rotary hoppers and digital cell indicators pack free-shape and half tablets alongside cassette medications.
Pouch packaging
WAP-144FS · 184FS · 224FS
Slim-Profile Intelligent Tablet Packing System
The WAP Model puts 144 to 224 cassettes into a cabinet only 460 mm deep. It stands against a wall like a cupboard yet runs the full CRETEM packing engine — infrared photodetection, 3 or 4 Free Shape Packing units, a 30- or 60-cell Manual Divide Unit and thermal-transfer printing at up to 60 unit-dose pouches per minute — on 300W typical power.
Supplied and supported in Canada and the US by Maxis Pharmacy Automation.
Three heights, one depth
1,252 mm wide
Max unit dose · avg 55 multi dose
30- or 60-cell MDU
Overview
1,252 mm wide and 460 mm deep, the WAP fits along a wall where a full-depth cabinet cannot go. Capacity grows in height — 1,740, 1,900 or 2,060 mm — not depth.
Specify 3 or 4 Free Shape Packing units so half tablets and irregular shapes run in parallel with cassette medications.
300W typical (700W max) and 250–350 kg depending on height, which simplifies installation in existing pharmacies.
How it works
Orders arrive via OCS linkage; every step below is handled inside the WAP Model.
Prescriptions arrive through the OCS linkage or are entered directly on the Windows 10 touch screen.
Each tablet is dispensed from its dedicated drug cassette and verified by infrared photodetection.
Free-shape and half tablets are packed by the FSP unit; manually divided medications are loaded via the MDU tray.
The printing & packing system thermal-prints the wrapper — no character or font-size limit — and seals each pouch.
Unit-dose or multi-dose pouches leave through the pouch outlet at up to 60 pouches per minute.
Up close
Components
Component overview as labelled in the CRETEM product documentation.
Dedicated cassette per medication, installed in each single drawer of the cabinet.
FND cassette positions for high-frequency medications in the upper cabinet.
The advanced T-slide technology lets staff draw cassettes forward for easy replenishment.
Front-facing cassettes are refilled from the cabinet face.
Industrial PC with a Windows 10 touch screen (10.1") for order input and system control.
Cell tray for manually divided medications that are not assigned to a cassette.
Dedicated printer for pouches produced by the FSP units.
Packs free-shape and half tablets that do not fit a standard cassette. A dedicated FSP printer labels FSP output.
Front-panel emergency stop.
Audio status messages during operation.
Thermal-transfer printing and pouch sealing in the lower cabinet; no limit to the number of characters or font size.
Finished pouches exit at the front of the lower cabinet.
Options & modules
Free Shape Packing and Manual Divide Units handle half tablets, irregular shapes and hand-loaded medications so they run through the same pouch sequence.

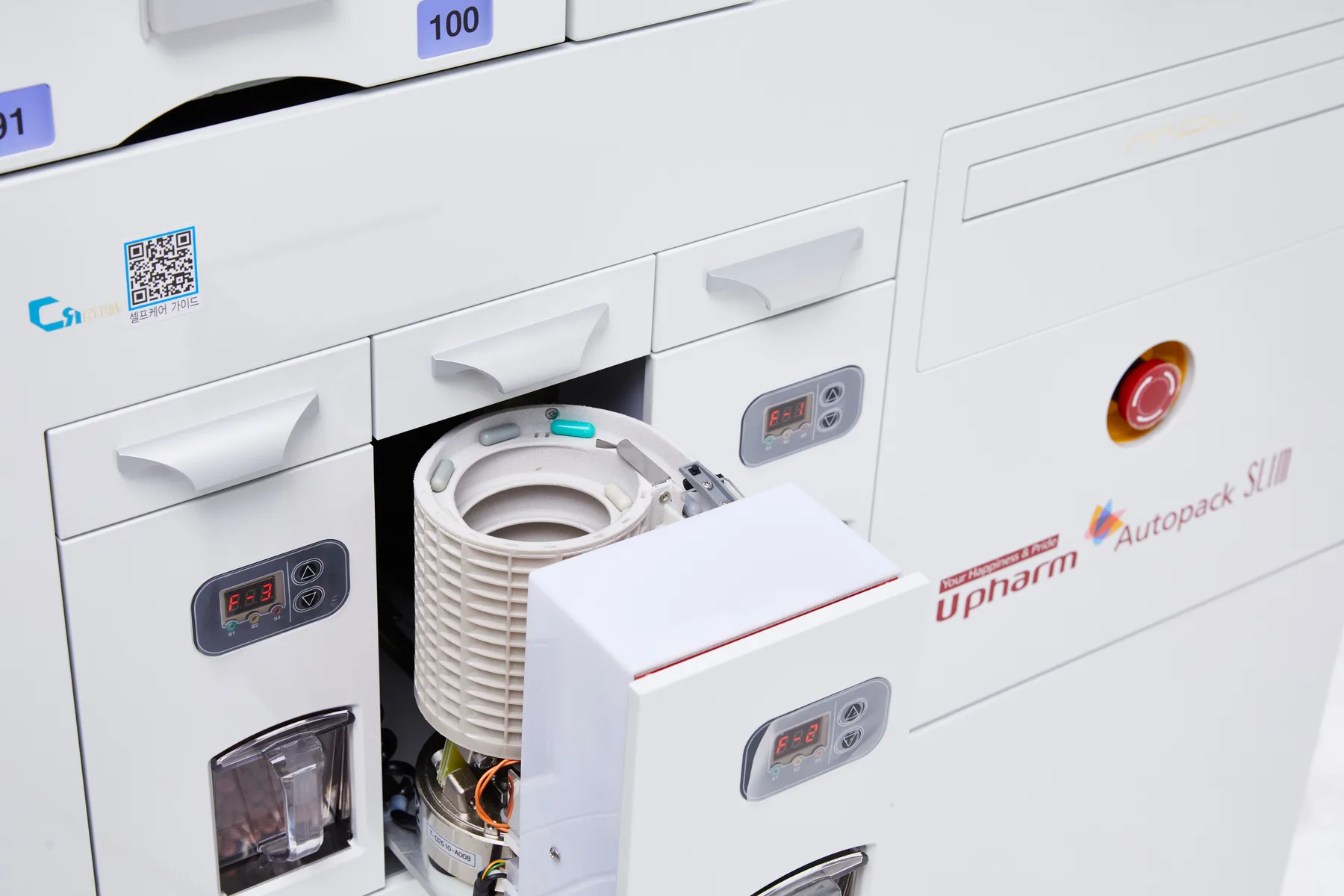

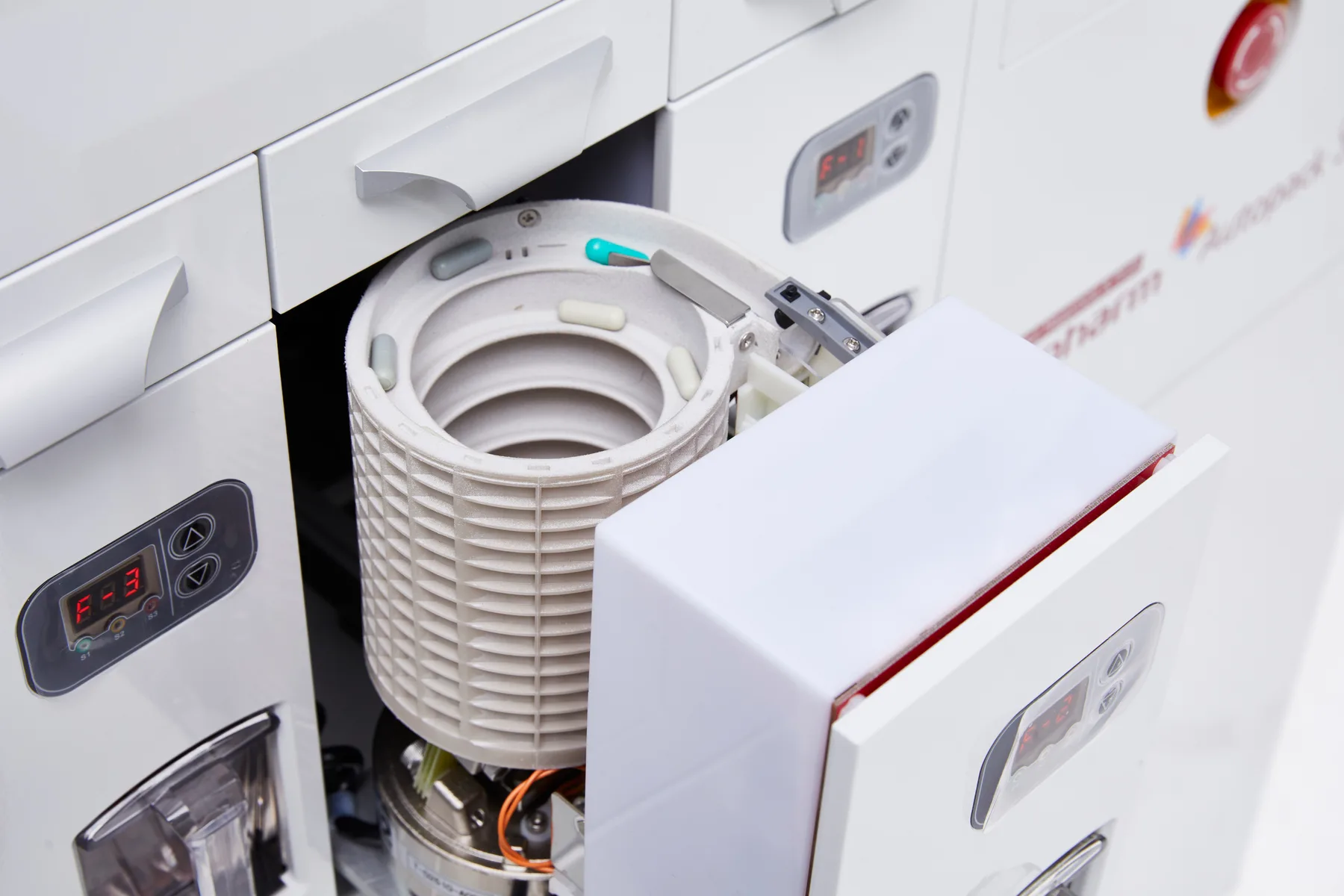

Front-mounted FSP drawers with rotary hoppers and digital cell indicators pack free-shape and half tablets alongside cassette medications.
Numbered cell tray for medications loaded by hand. Choose 30 or 60 cells to match how many non-cassette items you pack per run.

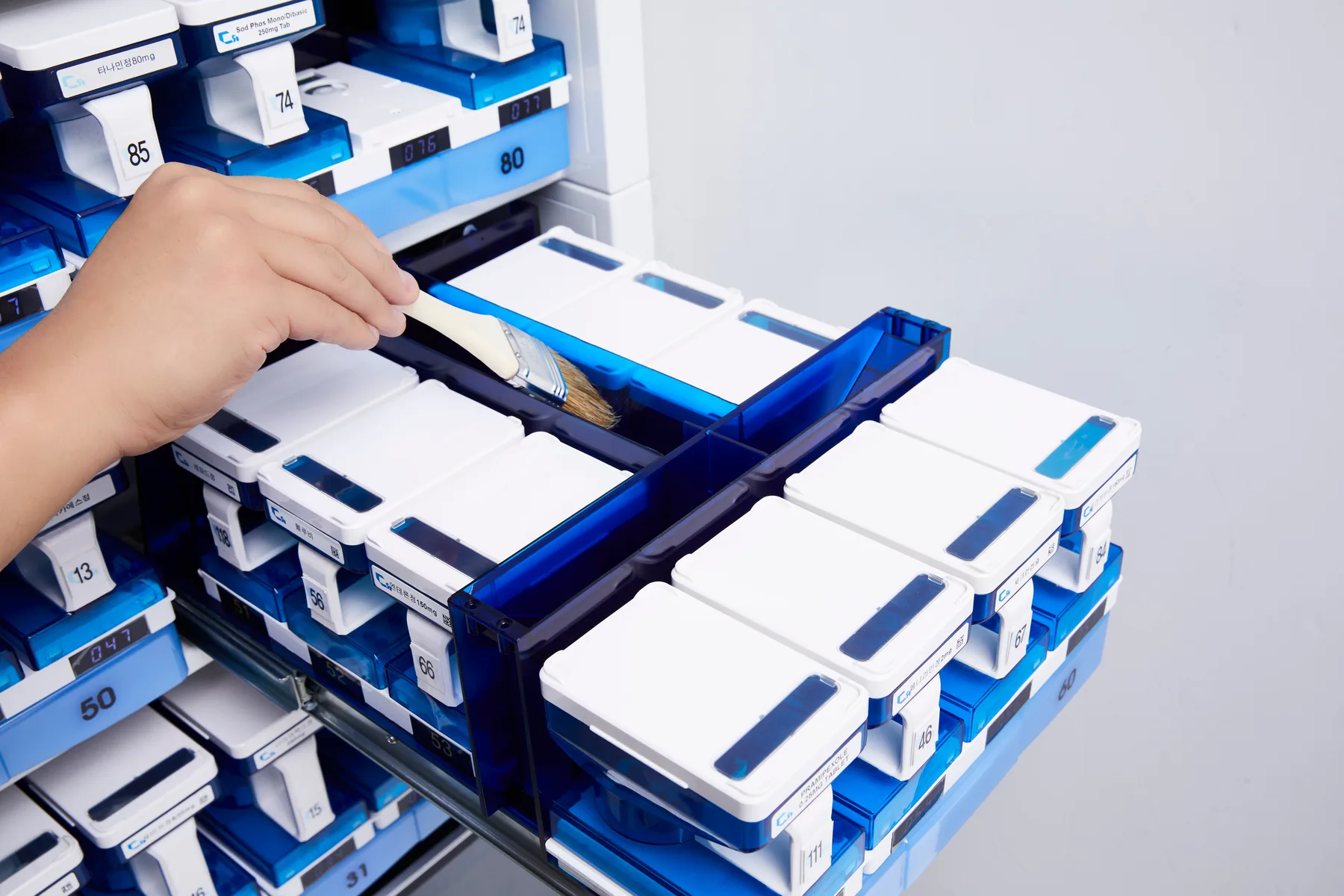

Cassette drawers pull forward on the cabinet face so replenishment works in a wall-line installation.
Models
Capacity, options and cabinet dimensions by model. Packing speed, detection and printing are common to the range.
| Specification | WAP-144FS | WAP-184FS | WAP-224FS |
|---|---|---|---|
| No. of cassettes | 144 | 184 | 224 |
| Cassette types (S / M / L) | 64 / 40 / 40 | 104 / 40 / 40 | 144 / 40 / 40 |
| FSP | 3 or 4 | 3 or 4 | 3 or 4 |
| MDU | 30 or 60 cell | 30 or 60 cell | 30 or 60 cell |
| Main body (W × D × H, mm) | 1,252 × 460 × 1,740 | 1,252 × 460 × 1,900 | 1,252 × 460 × 2,060 |
| Weight | 250 kg | 300 kg | 350 kg |
Swipe sideways to compare all 3 models.
Not sure which configuration fits your formulary or floor plan? We size it with you.
Get a configuration recommendationSpecifications
As published in the CRETEM product documentation. Dimensions are main body only (W × D × H).
FAQ
Can't find what you need? Our team answers configuration and installation questions directly.
Ask a specialistChoose WAP when floor depth is the constraint. It is only 460 mm deep and 1,252 mm wide, with 144–224 cassettes and 3 or 4 FSP units. The AP Model is a deeper 1,030 mm cabinet with 207–500 cassettes and 1 or 2 FSP units. Packing speed and pouch options are the same.
WAP-144FS holds 144 cassettes (64 small, 40 medium, 40 large). WAP-184FS holds 184 (104 / 40 / 40). WAP-224FS holds 224 (144 / 40 / 40). Width and depth stay 1,252 × 460 mm; height grows from 1,740 mm to 2,060 mm.
Maximum 60 unit-dose pouches per minute; multi-dose runs average 55 pouches per minute on all three sizes.
Every WAP configuration can be specified with 3 or 4 Free Shape Packing units.
A 30-cell or 60-cell Manual Divide Unit.
300W typical (700W maximum). Supported supplies are 220V/60Hz (Korea), 120V/60Hz (US) and 230–240V/50Hz (Europe).
Standard wrapping paper is 75 mm × 70 mm. A 55 mm × 50 mm size is available by order.
